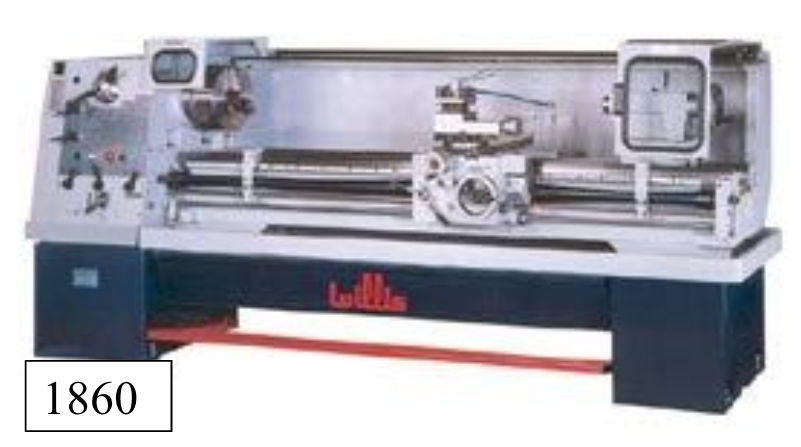

1860 Head Engine Lathe
18-22" Swing Series Geared Head Engine Lathe for Large-Sale Machining
The 18" - 22" Swing Series Geared Head Engine Lathe is designed for heavy-duty machining with advanced precision and power. Built to handle large-scale projects, this lathe features a robust 10HP spindle motor and a 16-step speed system, ensuring smooth performance across a range of applications. With a maximum swing over the bed of 560mm and distance between centers up to 3000mm, this lathe is perfect for large part machining while maintaining accuracy and control.
Key Features and Specifications
D1-8 Camlock Spindle Nose: Allows for quick and secure tool changes, minimizing downtime during operations.
16-Step Spindle Speed: Offers speeds from 20-1600 RPM for optimal flexibility in different machining processes. For even greater precision, an optional variable-speed drive is available, providing ranges from 16-2000 RPM in two variable ranges.
10HP Spindle Motor: Delivers powerful and consistent performance with a 10HP (7.5 kW) motor, designed to handle heavy-duty tasks efficiently.
Swing Over Bed: Available in three options—460mm, 510mm, and 560mm—allowing the lathe to accommodate larger parts and components.
Distance Between Centers: Four configurations (1000mm, 1500mm, 2000mm, and 3000mm) ensure the flexibility to work with a wide range of part sizes.
Precision Hardened Headstock Gears: The hardened and ground gears ensure smooth operation and long-term durability, even under heavy workloads.
Universal Gearbox: Provides a comprehensive range of threading capabilities, supporting metric, imperial, M.P., and D.P. standards, making this lathe suitable for a wide array of threading applications.
Induction-Hardened Bed: The bed is induction hardened and precision-ground, ensuring wear resistance and maintaining accuracy over extended use.
Mechanical Multi-Plate Clutch: This standard feature offers smooth operation and precise control, making it easier to handle demanding machining tasks.
Engineered for Large-Scale, Heavy-Duty Applications
The 18" - 22" Swing Series Geared Head Lathe is built for industrial environments where large parts, high precision, and power are essential. The 10HP motor and expansive swing over bed ensure that the lathe can tackle even the most challenging projects, from industrial components to high-tolerance precision work. The universal gearbox and multi-plate clutch offer enhanced control, allowing operators to customize threading and feed rates to exact specifications.
Installation & Setup Process
Stable Placement
Install the lathe on leveling pads provided for stable operation.
Secure Foundation
For best results, ensure installation on a solid concrete slab and anchor the lathe securely to the floor.
Surface Preparation
Remove rust-preventive coatings with WD-40 or a similar solution before initial use.
Precision Leveling
Use two levels to ensure accurate leveling on both the X and Z axes for optimal precision.
Why Choose Willis Machinery?
With over 60 years of expertise in the machinery industry, Willis Machinery is committed to delivering high-quality lathes and metalworking equipment. We provide full support, including parts availability, and customization options tailored to your needs. The 18-22" Swing Series Geared Head Engine Lathe is built for precision and durability, ensuring it meets the demands of your most challenging projects.
For more details, contact us at sales@willismachinery.com or call 419-537-1717 for customization options and technical support.
