Surface Grinders
Reciprocating Table Surface Grinders
Designed and built from the highest quality materials and technology available, Willis Surface Grinders are able to provide the greatest possible value for the customer.
In order to suit customers with all grinding applications, Willis Machinery & Tools offer many different surface grinder models. Constructed by the oldest surface grinder manufacturer in Taiwan, Willis Surface Grinders range from 6 inch x 16 inch to 36 inch x 80 inch in size and are available with manual, automatic, and PLC controls. Willis Machinery also has CNC bridge grinders available for much larger applications.
1632-3A
- 16 inch X 32 inch table working area
- 7.5 HP spindle motor
- 14 inch OD x 1-1/2 inch thick grinding wheel
- Watch A Tutorial Here
1224-3A
- 12 inch X 24 inch table working area
- 5 HP spindle motor
- 14 inch OD x 1-1/2 inch thick grinding wheel
- Watch A Tutorial Here
Watch Our Start Up Guide on Surface Grinders
Click Here and join us as we guide you from unboxing your new Willis Machinery precision surface grinder to successfully setting it up and running it. This video helps with 1632-3A and 1224-3A machines. Contact Us today with any questions!
818-3A
- Hydraulic table feed
- Electronic control crossfeed
- Automatic incremental downfeed
- 8 inch x 18 inch table working area
- 2 HP spindle motor
- 7 inch OD x 1/2 inch thick grinding wheel
Watch this 818-3A Start-Up Video
Click here to learn more about how to set up the 818-3A Surface Grinder. This video will cover set up, wiring and how the machinery functions. Contact us today to learn more!
1020-3A
- 10 inch X 20 inch table working area
- 3 HP spindle motor
- 7 inch OD x 1 inch thick grinding wheel
3280-3A, 32100-3A, 32120-3A
- 32 inch X 80 inch (100 inch x 120 inch optional) table working area
- 15 HP spindle motor
- 20 inch OD x 2" thick grinding wheel
2040-3A, 2060-3A
- 20 inch X 40 inch (60 inch optional) table working area
- 7.5 HP spindle motor
- 14 inch OD x 1-1/2 inch thick grinding wheel

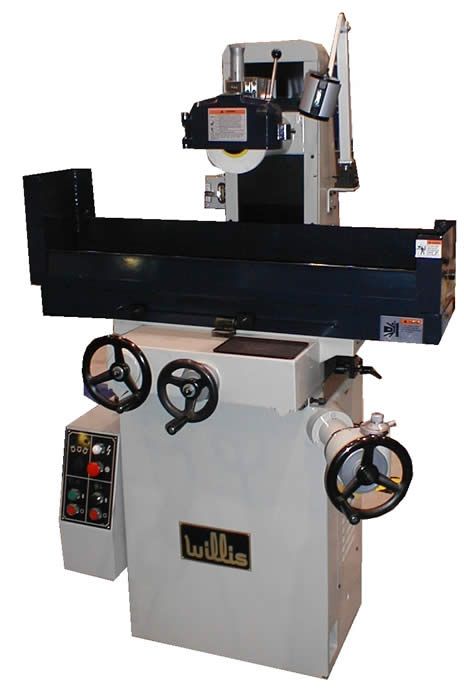

616S
- 6 inch X 16 inch table working area
- 2 HP spindle motor
- 7 inch OD x 1/2 inch thick grinding wheel
Willis Surface Grinder Features:
Our Surface Grinders provide a dynamically balanced spindle with high precision angular contact ball bearings. This feature reduces vibration which ensures smoother finishes. The design extends the lifespan of spindle and the grinding wheel.
Willis manual surface grinders utilize a one shot lube system where every Willis automatic surface grinder utilizes an automatic lubrication system. This system allows all moving parts are properly maintained, minimizing wear and tear.
A Halogen work light is provided on Willis surface grinders. Providing safety and precision, this feature enhances the visibility of operations.
A grinding wheel and flange are provided on our surface grinders as well as a wheel balancing stand and arbor.
Willis surface grinders are equipped standard with a table mounted wheel dresser.
Leveling pads are also standard with all models of Willis grinders. This ensures stability and safety during operations.
Some models feature for a magnetic coolant separator system with paper filtration.
Willis automatic grinders are equipped with a hydraulic table feed, electronic cross feed, and incremental down feed. All feeds are adjustable. All automatic grinding machines are standard with one “V” and one flat way for the table feed. On surface grinder models ranging from the 1632 and smaller, two “V” ways are standard for the cross feed. These smaller reciprocating grinder models are saddle type grinding machines. The automatic surface grinder models ranging from 2040-3A and larger are traveling column grinding machines with one flat and one “V” way. All “V” and flat ways are coated with “Turcite” for smooth precise grinding operations.
The 818-3A & 1020-3A surface grinder models include a permanent magnetic chuck, a dust suction/coolant system, and an overhead parallel dresser. The 1224-3A and larger models of surface grinders come standard with an electromagnetic chuck with variable holding power. The reciprocating table surface grinder models 1224-3A through 2060-3A are equipped with a paper-filter coolant system. Overhead parallel dressers are provided as standard equipment on all grinding machines from the 818-3A to the largest surface grinder model. Models 1224 and larger are available as PLC controlled grinding machines with a “Mitsubishi” servo motor and encoder, precision ball screws, a manual pulse generator (MPG) hand-wheel, and a programmable down feed. Optional PLC units provide these surface grinders with programmable cross feed, and automatic wheel dressing compensation.
