Large Swing Big Bore CNC Lathes

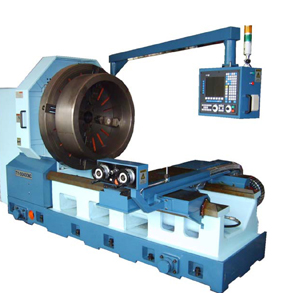

Willis Large Swing Big Bore CNC Lathes

  • Ranging from:
  • > 52" Swing Over Bed
  • > 36" Swing Over Crossslide
  • > 36" Bed Width
  • > 5-550 Spindle Speeds (3 gears ranges with auto shift)
  • > A2-15 Spindle Nose (front and rear)
  • > 43" Z Axis Travel
  • > 2.4" (60mm) Z Axis Ballscrew Diameter
  • > 27" X Axis Travel
  • > 1.6" (40mm) X Axis Ballscrew Diameter
  • > 30 HP Spindle motor, Fanuc
  • > 18,000 lbs. Weight
  • Call us for a free Willis Big Bore CNC Lathe quote today! - (419) 537-1717

  • 10" spindle bore (255mm), A2-15 mount
  • Back plate for Rear Chuck (A2-15)
  • 4 way horizontal automatic hydraulic turret
  • Rear chain type chip conveyor with cart
  • 50" Face plate with T-slots
  • 40" sliding door for front and full length rear splashguard

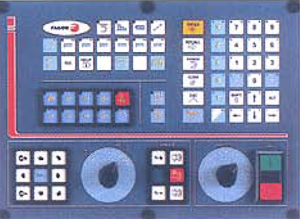

  • Can be operated by users with or without prior programming knowledge.
  • Graphics with tool path.
  • Easy to modify already existing part-programs.

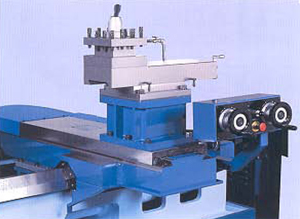

  • 4 Way tool post (Standard)

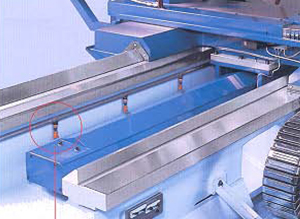

  • The chips to be flow into the chip tray from the bed by coolant, to avoid chips amass on bed.

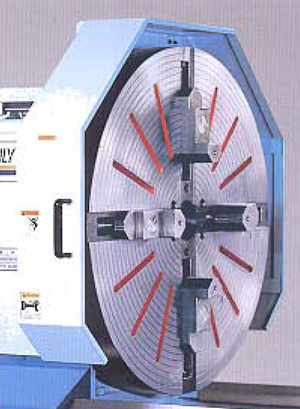

  • Movable Chuck Cover
