Big Bore Conventional / Manual Lathes PK II

Geared Head Engine Lathes for Sale

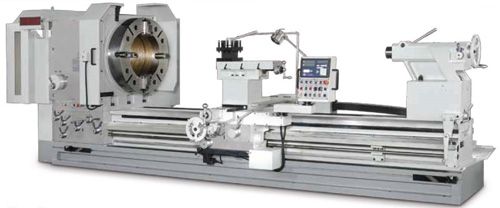

Mammoth PK II

The outstanding features of the Willis Mammoth Lathes PK II include: one piece solid base casting, two shear bed way with extra way supporting the apron, standard with a 6 inch spindle bore and optional up to 30 inches, 6-way power feed and rapid traverse are standard, 30 HP spindle motor standard with optional to 50 HP, wide range of speeds, feeds and threads.

Outstanding Features

  • One piece bed, floor type casting.
  • 2 shear bed way with extra way supporting the apron.
  • All ways are hardened and ground.
  • Alloy steel spindle with opposed taper roller bearings.
  • Hardened and ground gears, shafts and cross slide ways.
  • Electromagnetic spindle brake.
  • 18-speed geared headstock.
  • 6-way rapid traverse and power feed to top slide.
  • Totally enclosed universal inch / metric gear box.
  • Carriage position device.
  • Dual voltage spindle motor, 30 to 50 HP.
  • Pressurized one shot lube system for cross slide and carriage.

Standard Accessories

  • Thread chasing dial
  • 2-speed tailstock quill (manual)
  • 1 dead center, MT#6
  • Coolant pump
  • Work lamp
  • Follow type splash guard
  • One piece stainless steel lead screw cover slide and carriage
  • Water and oil collect plate under apron
  • Rear side chip and water collect plate

Optional Accessories

  • Rear chip conveyor
