Big Bore Conventional / Manual Lathes PK Turret

Geared Head Engine Lathes for Sale

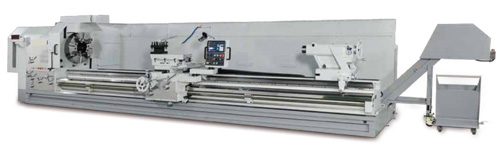

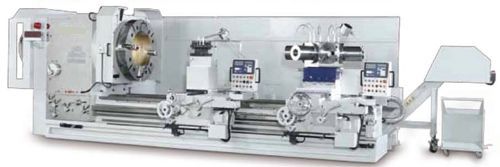

Mammoth PK Turret

Outstanding Features

  • One piece bed, floor type casting
  • 2 Shear bed way with extra way supporting the apron
  • All ways are hardened and ground
  • Alloy steel spindle with opposed taper roller bearings
  • Hardened and ground gears, shafts and cross slide ways
  • Electromagnetic spindle brake
  • 18-Speed geared headstock
  • 6-Way rapid traverse and power feed to top slide
  • Totally enclosed universal inch / metric gear box
  • Carriage position device
  • 40 HP spindle motor standard, 50 HP optional
  • Pressurized one shot lube system for cross slide and carriage

Standard Accessories

  • Tower Turret or Compound tool post (OPT.) - Left hand side carriage
  • Hydraulic Turret (H6) - Right hand side carriage
  • Rear chip conveyor
  • Digital readout (Griffin)
  • Thread chasing dial
  • Pressurized one shot lube system for cross slide and carriage
  • Coolant pump
  • Work lamp
  • Follow type splash guard
  • One piece stainless steel lead screw cover
  • Water and oil plate under apron
  • Rear side chip and water collect plate
