Vertical Machining Center VMC Series

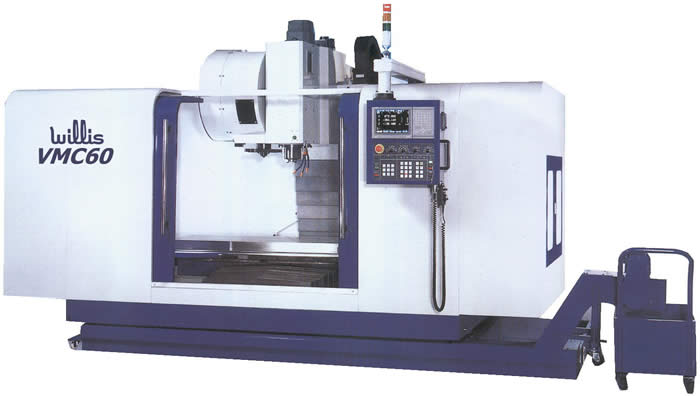

Willis VMC60

60" x 30" Heavy Duty CNC Vertical Machining Center

Standard Equipment

  • Fanuc 0iMD-1 digital control with Alpha AC digital servo motors and drives, 220 volts
  • Fanuc Alpha 20HP spindle motor
  • Fanuc Manual Guide i
  • Heat exchanger for electric cabinet
  • 8,000 RPM standard spindle speed
  • 24 tool arm type high speed ATC
  • CAT40 taper spindle
  • 60” x 30” x 26” X-Y-Z travels
  • Operation / maintenance / parts manuals and inspection report
  • Automatic lubrication systems with metered valves and low level alarm
  • Hardened and ground box ways (square ways) with Turcite on adjacent surfaces
  • Counterbalance for machine head
  • Full machine enclosure for safe, dry work area
  • Steel telescoping way covers on all axes
  • Halogen lighting for work area
  • Chip flush system with high pressure wash down device
  • Chip augur for chip removal
  • MPG hand wheel for manual axis movements
  • Ethernet connectivity
  • Flood coolant system
  • Power oil filter
  • 4th axis, 10” rotary table with tailstock, servo motor, cabling, and installation

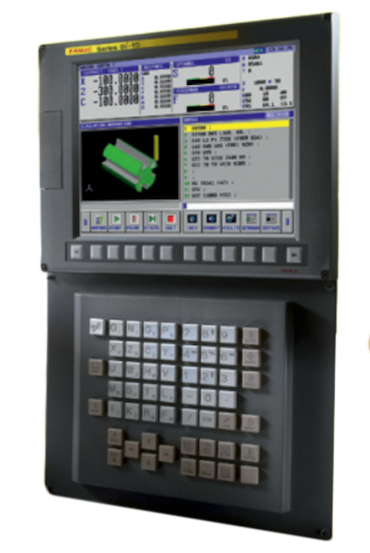

Fanuc Controls

  • Ease of Use
  • Innovative
  • Highlights
