Radial Arm Drill Presses

Willis Radial Drilling Machines

Willis Radial Arm Drills

  • CNC Machinery:
  • > 1½" – 3.75" Drilling Capacity in Mild Steel
  • > 8¼" – 20" Column Diameter
  • >30½" – 103" Max. Distance Spindle Center to Column Face
  • > 2hp – 15hp Spindle Motor
  • > 4 – 5 MT Spindle
  • Call us for a free Willis Radial Drilling Machine quote today! - (419) 537-1717

Extend your reach!

Built with high quality components including, hardened and ground steel gears, a well-built tension return spring for spindle return, a double walled column with an oversize bearing for easy rotation and maximum stiffness, as well as hardened steel wear strips to allow for smooth head travel, Willis radial arm drill presses allow for reliable drilling over extended periods of time. NRTL approved machines available upon request.

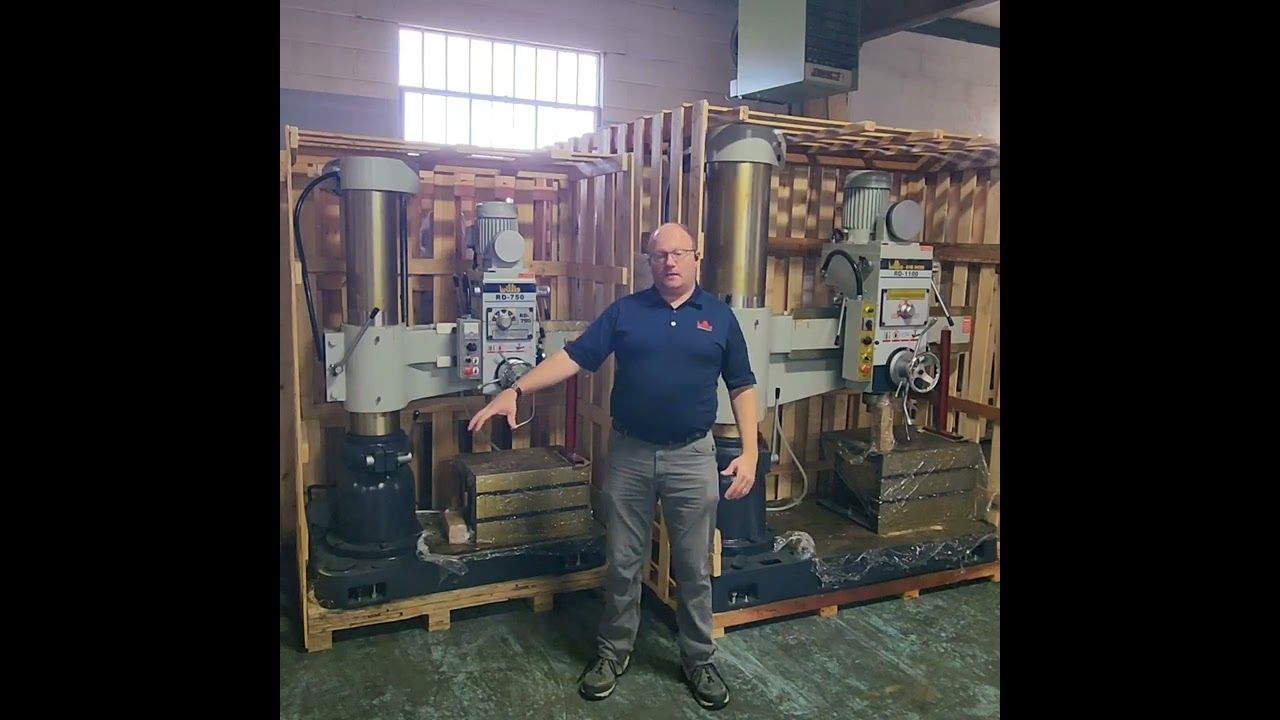

Willis RD 750/1100 Radial Drills Intro

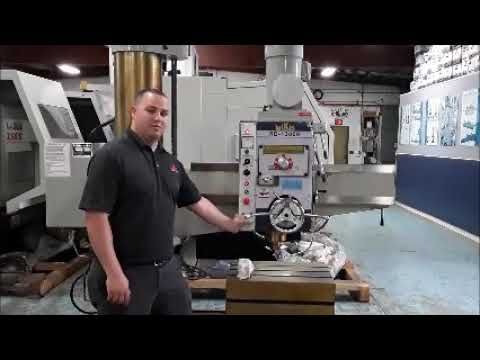

RD1300H video

Get A Quote Today

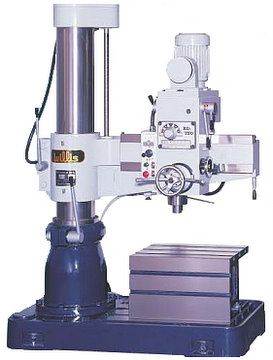

RD-750 Radial Drill Press

  • 30 inch arm
  • 1--1/2 inch drilling capacity
  • 16 inch x 22 inch x 13 inch H box table
  • 2 HP spindle drive motor
  • 19 inch horizontal drill head travel
  • 25 inch vertical arm travel
  • 88-1500 RPM's
  • 6 spindle speeds
  • Spindle feeds: 3 steps (0.002"~0.006")/rev

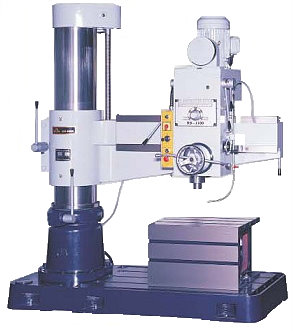

RD-1100 Radial Drill Press

  • 45 inch arm
  • 1--3/4 inch drilling capacity
  • 20 inch x 25 inch x 17 inch H box table
  • 5 HP spindle drive motor
  • 32 inch horizontal drill head travel
  • 27 inch vertical arm travel
  • 44-1500 RPM's
  • 12 spindle speeds
  • Spindle feeds: 3 steps (0.002 inch ~ 0.006 inch)/rev

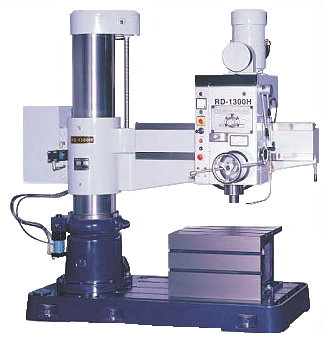

RD-1300H Radial Drill Press

  • 51 inch arm
  • 2 inch drilling capacity
  • 20 inch x 25 inch x 17 inch H box table
  • 7.5 HP spindle drive motor
  • 36 inch horizontal drill head travel
  • 27 inch vertical arm travel
  • 44-1500 RPM's
  • 12 spindle speeds
  • Hydraulic clamping for drill head and arm rotation
  • Spindle feeds: 3 steps (0.004 inch ~ 0.024 inch)/rev

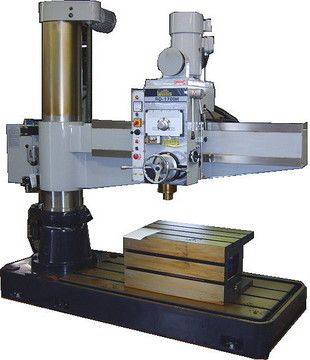

RD-1700H Radial Drill Press

  • 66 inch Arm
  • 2 inch Drilling Capacity
  • 22 inch x 32 inch x 16 inch B ox Table
  • 7.5 HP Spindle Drive Motor
  • 47 inch Horizontal Drill Head travel
  • 30-1500 RPM's
  • 12 Spindle Speeds
  • Hydraulic clamping for drill head
  • and arm rotation
  • Spindle feeds: 6 steps (0.004 inch ~ 0.024 inch)/Rev

Willis Radial Drilling Machine Features:

  • Willis radial arm drills include hardened and ground steel gears that run in an oil bath

  • These radial drilling machines incorporate a spindle and quill made from hardened and ground alloy steel

  • Spindle return tension is easily adjustable on our radial drills through a well-built return spring

  • A Double wall column with an oversize bearing provides easy rotation and maximum stiffness on all Willis radial arm drilling machines

  • Power-feed rates on these radial machines are easily selected and can be changed while spindle in running

  • Limit switches on our radial arm drilling machines are used to prevent over travel with power-feed

  • The radial arms are raised and lowered by a separate motor with safety nut for operation safety

  • Limit switches prevent radial arm over travel

  • Hardened steel wear strips for top of arm ways allow for smooth head travel

  • A Flood coolant system is provided on all Willis radial arm drills

  • Box tables with T-slots on both top and side surfaces are also standard on Willis radial arm drills

  • Fluorescent work light is provided

  • Toolbox, tools, and operator/parts manual is also provided on all Willis radial arm drilling machines
